Introduction

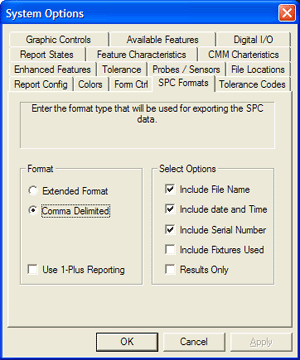

Geomet supports many formats for the saving of data in a ASCII formatted file. Setting the method of saving are done through the SPC Format page.

Format

There are two main format types. These are Extended and Comma Delimited.

Extended: The extended format was developed to support a GM specification. Each data line within the exported file contains one actual, plus file name, date / time, fixture, feature type and attribute data. This is normally not a format used by most SPC packages and does not conform well to spreadsheet use.

Comma Delimited: This format offer the greatest flexibility for use with SPC packages and spreadsheet use. Each line contains the full inspection providing well defined columns that are controlled by the Selection Options.

Use 1-Plus Reporting: By checking this options, Geomet will export the data values with one additional precision. For example, if your reporting on locations is done with a setting of 4 decimal places, the exported data will be saved with 5 decimal places.

This option is used to provide additional data when results are used in post calculation such as in a spread sheet. Often the reported data within Geomet would not match the reported data by a spreadsheet. This was a result due to Geomet having full precision, which can can have a 32 decimal place depth, when the manually entered data has been rounded for reporting.

Selection Options


The Selection Option group controls the data fields that will be included in the ASCII exported results file.

Include File Name: When this is checked, each line of exported data will contain the Geomet Inspection file name. For example "yourfile.GMT".

Include Data and Time: When this is checked, the date and time when the inspection was completed will be entered in the exported data line.

Include Serial Number: When this is checked, the Serial Number that was entered in the Inspection Report Header will be entered in the exported data line.

Include Fixtures Used: When this is checked, the Fixtures that ware entered in the Inspection Report Header will be entered in the exported data line. This option is helpful when sorting data in SPC software packages.

Results Only: This option exports only the results, stripping away all extra data. The results are contained in one column where one result per line is used.

Column Integrity

All new inspection programs will take the initial SPC export format from the choices selected in this System Options - SPC Format page. When writing the export file for the first time, a series if "optx" codes will be added in the first line. This is done to ensure subsequent inspection data conforms to the original export format.

For example, if the export format was changed by selected or de-selecting data fields, there would be a column shift. The data then would not match up with the previous exported data. These "opt00x" flags ensures data and column integrity is maintained.
