Tolerance Defaults

Up

Back


System Option:

Overview

Enhanced

Probes/Sensors

File Locations

Report States

SPC Format

Feature Char.

CMM Char.

Report Config.

Colors

Form Control

Graphic Ctrls

Tol. Codes





Site Map



helmel.com

System Options

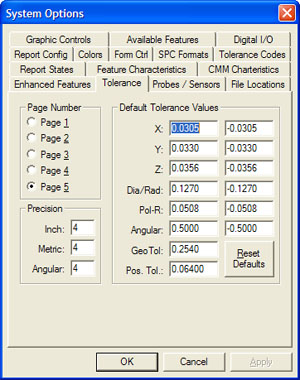

figure 1, System Options - Tolerance

Geomet maintains 5 tolerance pages where defaults can be established. This concept is designed to work with the tolerance section found in the title block on most drawings.

For example, Geomet Tolerance Pages can be configured by entering the plus / minus tolerance values and precision settings for reporting against a page number, see table 1.















Tol. Page # Dec. Prec. Tol. Values
Page 1 1 Place +/- 0.030"
Page 2 2 Places +/- 0.010"
Page 3 3 Places +/- 0.005"

Table 1, Tolerance Assignment Example

When you apply the tolerance against a feature, you can select the appropriate tolerance page and those default values will be applied including reconfiguring the results for any change in precision.

Should you require to reset to the factory defaults, press the <Reset Defaults> button and close the System Options.

Applying your Selections

When finished making all your selections, press the <Apply> button and close the System Options by pressing the <Ok> button.


return to System Options
