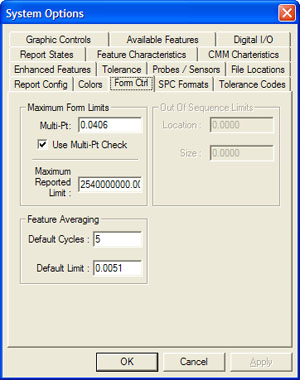

The Form Control Option page defines the feature characteristics associated with form.

Multi-Point Error Limit

Multi-Point Feature form limit. This value is used during the measuring process to test a new feature, before it is committed to the inspection report, to ensure it has proper form. For example, when measuring a circle, it is expected that the circularity is better than the 0.001" entered in the example. If during the measuring process the circularity exceeds this 0.001" limit, then a warning is provided to allow the operator to accept or re-measure the feature.

Default: 0.001"

Use Multi-Point Check

When checked, Geomet performs the Multi-Point Error Limit test on all measured features, excluding points.

Default: Checked

Maximum Reported Limit

Sets a maximum value for all size and location values being reported. If this exceeds this value, then the report will show "Exceeds Limit".

Default: 100000000.0

Default Cycles

Sets the default number of cycles used in Feature Averaging.

Default: 5

Default Limit

Sets the default test value for use with the Feature Averaging Tool.

Default: 0.0002"

Applying your Selections

When finished making all your selections, press the <Apply> button and close the System Options by pressing the <Ok> button.
