System Options

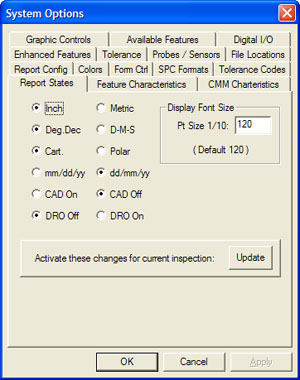

The Report States page controls the reporting formats used at startup or globally changed during the self-teach mode.

Reporting Characteristics

Select the small button next to the reporting characteristic.

Description Option 1 Option 2
Unit of Measure Inch Metric
Angular Reporting Degree.Decimal Degree-Minute-Seconds
Reporting Format Cartesian Polar
Date Format mm/dd/yy dd/mm/yy
CAD Graphics ON OFF
Digital ReadOut ON OFF

Activate these changes for current inspection

By selecting this option, all selections in Report States will activate immediately. Under normal conditions, Report States control the behavior of the inspection when it creates a new inspection report.

Display Font Size

Enter a font size here which will change the displayed results on the monitor. This setting does not change the size on printed reports.

Applying your Selections

When finished making all your selections, press the <Apply> button and close the System Options by pressing the <Ok> button.
