Stylus Rack Setup - Step 10

Up

Back



Stylus Mgr.

CMM Placement

Motion Geometry

Start Setup

Install PS16R

Set Stage

Orientation

Alignment

Bay Depth







Site Map



helmel.com

Establishing the Centerline of Bay One

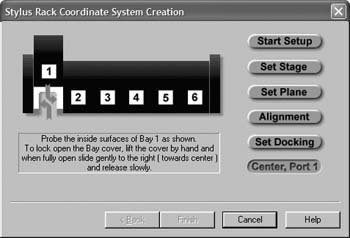

The final step required is to establish the center of Bay 1. To do this capture two data points inside the bay as shown below, see figure.

Upon completion of these steps, Geomet will prompt you the press the <Finish> button and your setup on the Stylus Rack is complete.

Return to Step 9.
