Establishing Alignment (Secondary Datum)

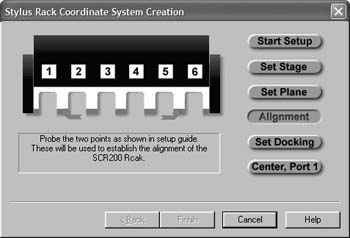

After Orientation has been completed, you will be prompted to enter a probing direction for alignment. You will capture two data points in the location shown by the flashing points.

A prompt will appear asking for the probing direction for the two points required for establishing the alignment of the rack. Once you have selected the direction, the setup screen will flash in red the positions you should capture. Probe each location until both data points have been captured.

When the alignment has been established, the setup will advance to step 9 automatically.

Return to Step 7, advance to Step 9.
