Stylus Rack Setup - Step 5

Up

Back



Stylus Mgr.

CMM Placement

Motion Geometry

Start Setup

Set Stage

Orientation

Alignment

Bay Depth

Bay Centerline







Site Map



helmel.com

Define the Stylus Model

When you start the setup process, the first information to be provided is the stylus model and size that will be used. This is an important step in calculating the location and orientation of your stylus rack.

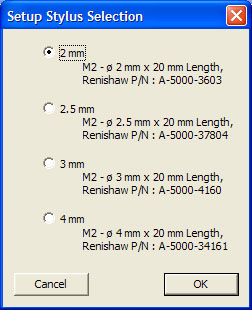

The setup of your probe system requires one of these styli models with no extensions.

When the correct stylus has been installed and chosen, press <OK> to proceed.

Return to Step 4, advance to Step 6.
