Stylus Rack Setup - Step 6

Up

Back



Stylus Mgr.

CMM Placement

Motion Geometry

Start Setup

Install PS16R

Orientation

Alignment

Bay Depth

Bay Centerline







Site Map



helmel.com

Set Staging Position

The Stage Position is the location in the MCS for all Stylus Rack operations. This position should be established in a location that will permit safe transition to the bay staging coordinates and allow rotation of any motorized probe head operation if you have one installed.

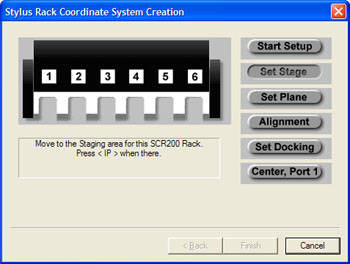

Move your CMM to a safe stage location and press the <IP> button on the joystick.

When the stage position has been established, the setup will advance to step 6 automatically.

Return to Step 5, advance to Step 7.
