Introduction

Geomet provides support, through Direct Computer Control, of a Renishaw Stylus Rack. The MCR20 can be configured for 2, 3, 4 or 6 bays for interchangeable modules utilizing the TP20 Touch Probe. The SCR200 supports 6 bays.

Hardware and Software Setup

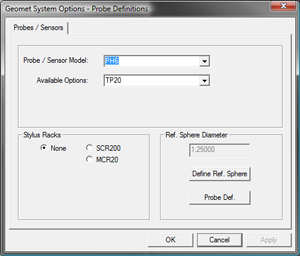

Setup ToolThe MCR20 Rack is considered a passive device. There exists no communication between the operations of the rack and the host CMM software. Therefore it is the responsibility of the CMM software to provide all actions and safeguards for your probe system.

The SCR200 is connected to the CMM probe interface which controls the enabling and disabling of the touch probe. When in disable mode, the module can be removing without triggering a false probe trip.

In order to activate the Stylus Rack support you must first activate the Probe System Setup Tools located off the main drop down menu, Qualify.

Select the radio button labeled “MCR20” of "SCR200" under Stylus Racks. In the “Probe / Sensor Model:” field, choose the head attached to your system. In the “Available Options:” choose TP20 or TP200. Now you are ready to proceed with locating and run the setup routine on the rack.

Proceed to the Setup Procedure Step 1 here.
