Introduction


The EZ Launch Menu System is a hybrid system designed for the production environment. It wraps traditional one touch support to access inspection files and full unattended automation in one clean package.

The EZ Launch system has three components, two for manual operations plus one for configuring a polling service. It has been designed around a multiple fixture environment and when available, interfaces with a robot loading system for unattended operations.

Activating the Fixture Menu System.

Activating the Fixture Menu system is accomplished in the System Options under th System Settings header. Change Use EZ Launch menu system to 'Yes', see example at right.

When EZ Launch Menus are active, Geomet will default to displaying these menus when starting, at the completion of an inspection or after a restart.

NOTE: Geomet offers two competing menu systems. Fast Access and EZ Launch. Both can not be active at the same time. When activating a menu system in System Options tests are made to ensure that only one is active.

Support for Fixtures

A Fixture can be a simple clamping device for a single production part or a multiple cradle fixture that supports many production parts simultaneously. EZ Launch defines a Fixture System as having a Base and Cradles where cradles are mounted to the base with support for up to 100 cradles.

For example you may have 4 cradles mounted on a single base plate which then gets placed on the CMM.

Accessing the EZ Launch Definition Tools

From the Geomet menu, locate the PCS drop down menu. Defining a Fixture System starts with:

[EZ Launch Set Definitions→EZ Launch Fixture Base Definition]

This is your starting point to building the EZ Launch System.

The other menu selection is:

[EZ Launch Set Definitions→EZ Launch Cradle Assignments]

This command launches the menu system in operational mode which is ready for inspections.

Creating and Editing the Fixture Base Definitions

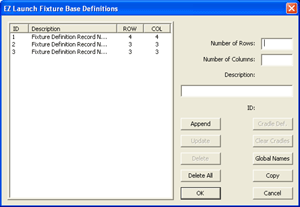

After choosing [EZ Launch Fixture Base Definitions], you will see a listing of existing Fixture Definitions plus the available tools to define a new, or edit an existing fixture system.

This tool provides basic information to define the layout of your fixture system.

It is based on a row / column concept but can be customized to adapt to almost any layout design.

To build a new definition, enter the values for rows and columns. The valid ranges are 1-10 for each field. Then assign a descriptive label. If you do not enter a description, Geomet will automatically add “FCS Definition Record Number X” where X will be the next available number. To save the new definition, press <Append>.

Here we added a new definition using 5 for both rows and columns.

Tools Available for Fixture Base Definitions

When there are no existing Fixture Definitions selected in the listing, you have access to:

  • Append
  • Global Names
  • Delete All

Append: Is used when building a new Fixture Definition and is available when valid numbers are entered in the Row and Column data fields.

Global Names: There are control buttons available in the Cradle Definition page that you can rename. By using the Global Names command, all new Fixture / Cradle Definitions will use the names you have provided here over the default names. A more detailed discussion of control names are provided on the Global Names page.

Delete All: This command will delete all existing Fixture Definitions stored in the database. A warning statement will appear to confirm your selection. All data records that define the base, define the cradles, file and FCS assignments are deleted in one operation.

When an existing Fixture Definition is selected, the commands available are:

  • Append
  • Update
  • Delete
  • Delete All
  • Cradle Def.
  • Clear Cradles
  • Global Names
  • Copy

Append, Global Names and Delete All behave as explained above.

Update: This command allows changes to Row and Column values as well as the Description Field for the selected Fixture Definition.

Delete: This command will remove the selected Fixture Definition and all associated Cradle records from the database. It does not renumber the remaining Fixture Definition records.

Cradle Def: This command moves to the Cradle Definition tools associated with the selected Fixture Definition. When you build a new Fixture Definition, this is the next step in defining the complete fixture system.

Clear Cradles: This command will delete all Cradle records attached to the selected Fixture Definition record. This is helpful when you copy a Fixture Definition record and you would like to clear out all cradle data before building a new system

Copy: This command makes a exact copy of the selected Fixture Definition.

Tips on Fixture Base Definitions

Although this system starts with a row and column layout, it can be customized to more closely match your exact needs. For example, if you have a fixture that has 14 cradles in a 4-3-3-4 pattern, you would start by building a 4x4, row/column Fixture Definition.

Later in Cradle Definitions, you can Disable two cradles which eliminates them from the the EZ Launch fixture system effectively making a 4-3-3-4 fixture system.

Editing the Cradles within the Fixture Base Definition

To proceed to editing the individual Cradles, start by selecting a Fixture Base Definition to work with. Then press the <Cradle Def> button which will take you to the Cradle Definition Tool (Follow the Step 2 link below).

Step 2 - Cradle Definitions
