  Command Activation

  Definition
  The Report Control Center provides access to manual print commands, quick display controls and filter featuring. In Geomet levels 101+ and 301, control over the display of the Advanced Editor tool is also available.
  Alternate access to the Report Control Center

NOTE: The Display button is only available to Geomet 101+, 301 and 501 levels!

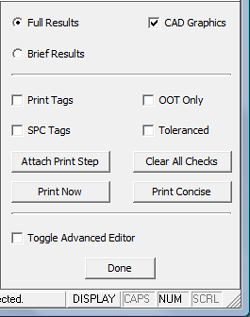

The Display button on the Geomet Statusbar, opens the Report Control Center providing access to report and display settings For a complete description, visit the Geomet Report Control Center help page.

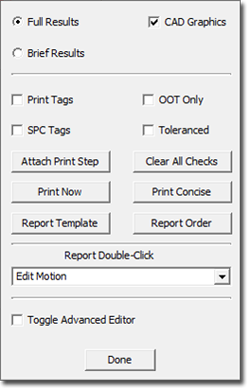

Report Control Center
  Report Control Center


The Report Control Center 'slides' upward when activated and remains on the display until the Done button has been pressed.

Tip: The display method can be set in System Options under the setting "Animate Style..."

Report Control Center
  Overview of Commands

Command Description
Full Results Sets the display of features in the on-screen report to show all results.
Brief Results Reduces the on-screen display of features to just an abbreviated, single line of text. Designed to support the Advanced Editor for selecting a feature to view or edit.

Full Report  Brief Results
Full Results Brief Results
CAD Graphics  Toggle the display state of the CAD Graphics. When checked, CAD Graphics are displayed.
Print Tags
SPC Tags
OOT Only
Changes the display state of the on-screen and printed report to show only items that have a Print Exception SPC Tags or contain Out-of-Tolerance results. These checks can be combined.
Toleranced  Changes the display state of the on-screen and printed report to show all features that have at least one attribute toleranced.
Attach Print Step  Configure your report by placing checks on the options (Print, SPC Tags and OOT) to be included in the printed report. Press the <Attach Print Step> button which embeds a print command into the inspection report. During an inspection run, this step instructs Geomet to print a report.
Print Now  Manually activated print command. Utilizes the state of options configured.
Print Concise Manually prints a Concise report.
Report Template Report Templates stores a snapshot of the current inspection report with the tags, tolerances and other print controls set. This allows for different configured reports to suit the target audience. For example a full report might go to Quality Control files, but a report showing only critical values can be provided to engineers.
Report Order The Custom Ordered Report allows the operator to control the printing sequence of features within Geomet 301. For example, the report may be constructed to place similar features together, without regard when they were originally added to the inspection report. In normal reports, the features are printed in the same order they were added to the inspection.
Toggle Advanced Editor  Controls the display state of the Advanced Feature Editor. When checked, the Advanced Feature Editor appears.
  Setting Report Double-Click

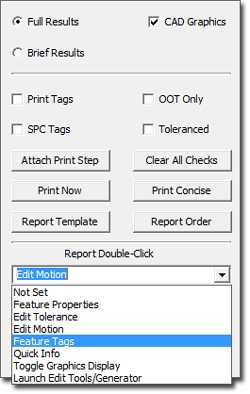

To set the double-click function, open the drop-down selection and left-click on the desired function. In the figure at right, it is currently set for Feature Tags.

The double-click method works on a selected feature in the report area. Highlight the feature and quickly double-click the left mouse button.

If the double-click method is valid for that feature, the action will commence.

The double-click function can also be found in System Options.
