Technical Support Article KB10232

Applies to: Geomet 101+, Geomet 301
Last updated: Wednesday March 02, 2011.

Introduction

The EZ Launch Menu system has been designed to provide easy access to initiate one or more inspection programs through a simple one keystroke process. The EZ Launch Menu supports both interaction with an operator, but also as a polling service to automatically start upon receiving detailed information from a ASCII text data file.

The menu system is composed of four main sections. The Main Menu, Base Definitions, Cradle Definitions and Polling Service Setup.

Main Menu
This is the menu that Geomet will display for the operator to interact with. It contains a listing of all Base Definitions, which can be described as templates for how the menus will look and behave. The Main Menu will show all available buttons as described in the Base Definition. These are the single touch buttons that the operator will use in their normal inspection process.

Base Definitions
Base Definitions are templates that define the row and column format of the single touch buttons. There can be unlimited Base Definitions within the EZ Launch Menu system. This allows good organizational use of the menu by defining common inspection programs or fixture usage for easy retrieval.

Cradle Definitions
Each single touch button in the EZ Launch Menu system is called a cradle. Each cradle can contain one or more inspection programs. The cradle name can from a fixture that has multiple positions where each position 'cradles' the inspection part. Cradles can be enabled or removed from the template. They can be renamed to easy identification.

Polling Service Setup
This reconfigures the EZ Launch Menu from an operator mode to a active listening service that monitors a data file for automatic operations. The data file will contain all required inspection parameters, such as what files to run and order of inspections. This allows the populating of a multiple position fixture with a variety of production parts and allowing the CMM to inspect all parts by following a script file.

Help Pages
There are several help pages available to explain the setup and use of the EZ Launch menu service.

EZ Launch Summary Basic information regarding the setup and use of the menu system.
Base Definitions Create basic templates for the design of the single touch buttons. These are accomplished in a row and column format to support up to 100 buttons.
Cradle Defintions Defines the characteristics of each button, or cradle. Each cradle can have multiple assigned inspection files, custom labeling and visible states.
Polling Service Setup Sets the parameters for the polling service. This includes the file names, paths, frequency of polling and results gathering.
Global Name Parameters Assigns names to the various buttons within the EZ Launch Menu System. This process assists in localizing the menu system to a language or a process.
System Options In the System Options, the EZ Launch Menu System is activated or deactivated.

Example #1, 4-Bay Fixture

A common practice in manufacturing is the use of fixtures to hold production parts during the manufacturing and inspection phases. The use of fixtures on a CMM is a efficient method to provide automatic inspections which can be used by inspection or shop floor personnel with minimal training.

Step 1
To build a EZ Launch Menu for this fixture we start by defining a Base Definition that is configured to the fixture. To launch the Base Definition tool choose from the main PCS menu:

[EZ Launch Setup Definitions→EZ Launch Fixture Base Definition]

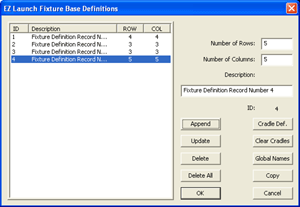

Base DefinitionsThe fixture may be designed in a 2 x 2 or 4 x 1 layout. We will use the 2 x 2 example here.

In the Base Definition screen enter 2 in the data fields:

Number of Rows:
Number of Columns:

To provide a unique description, add a name to the data field:

Description:

To create the actual template, press the <Append> button. This will create a new template and save it to the database.

Step 2

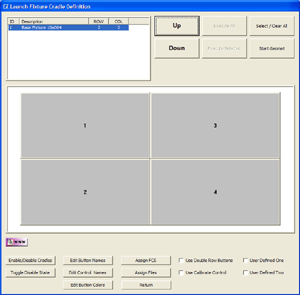

Cradle DefinitionsNow is time to build the single touch buttons by assigning the inspection programs and other parameters.

From our example shown here, you have the basic button setup corresponding to a 2 x 2 layout.

To assign files to each button, press the control button <Assign Files>. Then choose a button by left-clicking on it. A file dialog tool is displayed where you navigate to the inspection program to select. You can select as many inspection files as required.

Repeat this process for each button as needed.

To assist is easier identification, add a unique name to the button. For example button number 1 is identified with the label '1'. Not very descriptive. Press the button <Edit Button Names> and left-click on button number 1 and add a new name.

Save your changes by pressing the <Return> button and the <Ok> button from the Base Definition tool.

We have now created a basic EZ Launch Menu System.

Step 3
Activating the EZ Launch Menu System. This is accomplished in the System Options, Enhance Features Page. Press the <f9> keystroke and choose Enhanced Features. Place a check next to the EZ Launch Menu System option. Press <Apply> and <Ok> to save your changes.

Step 4

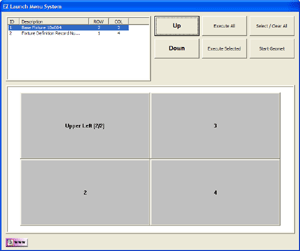

EZ Launch menuUsing the EZ Launch Menu System. When you restart Geomet, the EZ Launch Menus will now appear ready for use.

The operator would populate the fixture with the required parts for inspection.

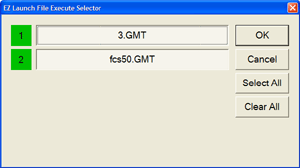

Select ProgramsNext the proper single touch button would be selected and if there are multiple inspection programs assigned to this button a secondary screen will appear showing all available programs. The operator can then choose the program(s) required and save the request by pressing the <Ok> button. The selected programs can be identified as having the  highlighted 'green' number indicator.

If there was only one assigned inspection program to a button, the file selection tool will not display only the highlighting of the menu button will occur.

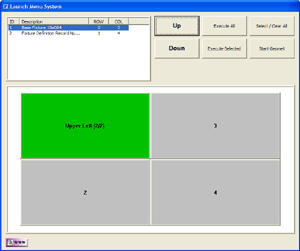

Highlighted MenuWhen you are returned to the menu, your button will now be highlighted.

The operator would repeat this selection step for each populated cradle in the fixture. When completed a press of the <Execute Selected> will commence the inspection process on all inspection programs.
NOTE: If you repeating a inspection and the various inspection files have already been selected, just press the <Select / Clear All> button to highlight the previous inspections followed by the <Execute Selected> button to commence inspections.
Example #2 - Polling Service

The polling service is a unique function of the EZ Launch Menu System. The input of which inspection programs to run is not handled by the operator pressing the cradle buttons, but is handled by reading a simple ASCII text file which contains all required data.

For detailed explanation of the base setup of the polling service, check here. Once you have completed the setup, restart Geomet <f10> to activate the changes.

The file that the polling service is looking for consists of a simple 3 column, comma delimited format.

Column 1 Column 2 Column 3
Cradle ID Number Part Serial Number File Index ID
(required)  (optional)  (required)
Example:
1, 0001, 2

In this example the first column has a '1' which identifies which cradle is to be used.

The serial number is being provided '0001' and will be entered into the report header.

The File Index ID, '2' is mapped to the files in the File Assignment Table that was build in the Polling Setup screen.

There is no limit to number of inspections that can occur using this method.

When the operator is ready to perform the inspection, the data files is saved to the destination folder and the polling service will acknowledge its presence and begin the inspections. The polling service will remove the file after reading it.
