Command Activation

Shift + I Modify→Insert
Keyboard Main Menu Toolbar

Introduction

The Insert command allow the insertion of one new feature after a specified feature number.

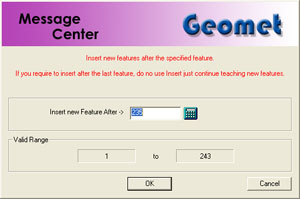

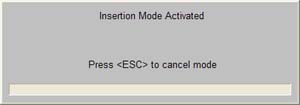

figure 1, Feature Selection figure 2, Insert Notice

Inserting a New Feature

To insert a new feature, activate the Insert Mode. Enter a Feature Number which specifies where the insert will take place, see figure 1. The new feature will be after the feature number you have entered. Press the <Ok> button and the Insert Notice will appear, see figure 2. When a new feature has been inserted, Geomet updates all feature numbers and record links to ensure references to features remain intact.

Feature that can be include:

  • Measured Feature
  • Constructed Feature
  • Text and User Prompt
  • Distance, Angle, Bisector and Intersect

Features that are blocked include:

  • PCS Components
  • Stylus Changes

Cancel the Insert Mode by pressing the <Esc> key.

NOTE: When inserting a new feature with a motion map attached to it, care should be taken to ensure proper start and end IPs. After the new feature has been added, review your motion map.


Edit History Tool, Undo, Move, Delete, Delete All After, Navigation Keys, Delete Permanently
