Introduction
Geomet offers three levels of text support, plus edit capabilities.
| y |
Measure→Text |
|
| Keyboard |
Main Menu |
Toolbar |
The Basic Text routine permits comments to be written to the inspection report as a
feature step. This text is entered during the self-teach operation, see figure 1.
When executing the part program, the text is placed in the inspection report and proceeds
to the next step. During execution, the text can not be edited.
 |

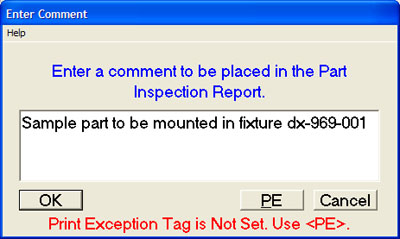

| figure 1, Basic Text Entry Screen |
 |
| figure
2, Edit Text Command |
All text features can be edited to revise the text, and if applicable, the attached
image. To start the editing process, highlight the text statement in the inspection report
and activate the feature sub-menu by right-clicking, see figure
2.
Choose <Edit Text> and the appropriate text dialog will appear from which you
can then edit the text or attached image.
