  6.66.009.001   Geomet 101, 101+, 301, 501


Command Activation

  View→Show or Hide Features
Keyboard Main Menu

Show or Hide Features
Toolbar

Definition

The Graphic Setting Control (GST) provides one-stop access to setting the visibility state for all features in your inspection report. The GST also controls the visible state of the current stylus position, Reference Sphere and Surface Plate.

Graphic Setting Tool

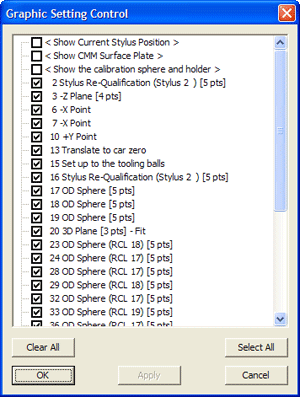

figure 1, The Graphic Setting Tool

Using the Graphic Setting Tool


When you activate the GST, it displays all features in your inspection with its current visible state as indicated by the check. If you activate the GST while having features selected in your inspection report, then it only those features. To change the visible state, toggle the checkmark.

Clear All

Removes all checkmarks from features in the inspection report.

Select All

The <Select All> button works with all features currently shown in the GST. Selecting this button places a check on all features. It does not place a check on any features not displayed in the GST.

Show All

When the GST displays only the selected features pressing the <Show All> button will rebuild the list with all features in the inspection report.

Apply

Commits your changes to the graphics display and leaves the GST open.

OK

Commits your changes to the graphics display and closes the GST open.

Cancel

Cancels the current GST and if changes have been made, it will prompt you to save your changes or discard them.
