Sphere

Command Activation

v Measure→Sphere SphereToolbar.jpg (6982 bytes)
Keyboard Main Menu Toolbar

Definition

A sphere is the trail left by a point traveling in every conceivable direction at a constant distance from another point called its center. A sphere is also the surface generated by a rotating circle about a coplanar axis through its center. The sphere is characterized by its diameter and a three dimensional center location.

The Sphere feature provides the diameter and 3D center location of the sphere. To measure a sphere, press the < v > key for a 4 point, or the default number of data points as established in System Options. To override the default, press < shift + V > and enter any number of data points.

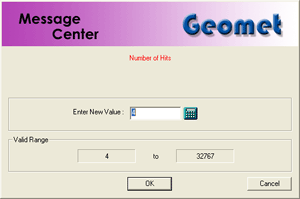

figure 1, Multi-Point Data Entry

If Auto-Direction is not enabled, Geomet will prompt you for the characteristic of the sphere as shown in figure 2. After the data points have been captured, Geomet will test the form error and if exceed, will prompt you to < Accept > or < Re-Meas >, see figure 3.

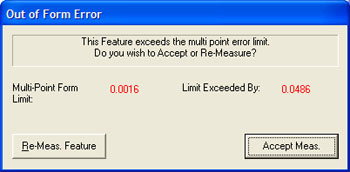

figure 2, Selector figure 3, Out-of-Form Warning

Tolerance

Tolerance of a Sphere is available in Cartesian / Linear format and in Bilateral or GDT formats.

Back to to

Special Sphere Reporting Tools

In addition to the standard reporting of a Sphere that consists of position and size, Geomet provides two additional tools that provides a means to specify alternative position and size reporting. The first tool allows a specific diameter on the sphere to be entered and returns the height off the current PCS. The second tool provides for a specified offset from the current PCS and report the diameter on the Sphere. In both cases, the result is reported as a 3D Circle.

To see how these tools work, visit Sphere Offset and Sphere Diameter.
