Stylus Manager Column Assignments
Search tool Information index


7.01.029 Geomet Junior+, 101, 101+, 301, 501

  Definition
  Geomet's Stylus Manager can be configured to show additional information in column format to assist in identifying the current styli in the database. By default, the columns display are:

  1. Label
  2. Dia.
  3. Tip No.
  Customizing the columns is especially useful when your probe system configuration include motorized probe heads or stylus racks. By adding the probe head angle values and stylus rack bay assignments, quick identification can be easily done when visiting the Stylus Manager
  Procedure

To activate the column selection tool, left-click directly on a existing column label. For example, the column labeled "Dia." acts as a button when you click directly on it.

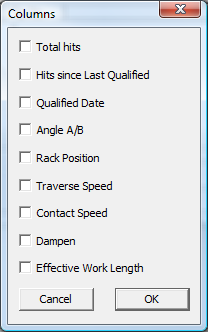

A column chooser tool appears displaying the current available columns. Any columns that are already active will show a checkmark next to the name.

When the columns have been assigned, activate the changes by pressing the <OK> button.

Available Columns
  Column Descriptions

Total Hits:
Total hits taken by the individual styli configuration from the Stylus database inception.
Traverse Speed:
Certain motion controllers allow individual assigned traverse speed settings. This is the speed used between IPs to IPs/SOs.
Hits since Last Qualified:
Accumulative hits taken by the individual stylus since last qualification.
Contact Speed:
Certain motion controllers allows individual stylus settings for contact speed of MPs.
Qualified Date:
Date of last qualification.
Dampen:
Future use.
Angle A/B:
Articulated position of a motorized probe head such as a PH10, or the RTP20 semi-motorized probe head.
Effective Work Length:
Future use.
Rack Position:
Assigned bay number for this individual stylus module.

  Stylus Manager, Features, Menus and Support Tools
