Introduction


figure 1, ToolBar Status

Geomet has several Toolbars to assist accessing various features with the click of the mouse. These Toolbars can be toggled on or off through the use of the Toolbars Status control. To activate the Toolbar Status dialog, choose [View→ToolBar Status] from the main drop down menu.

Activating a ToolBar involves placing a check next to the desired selection. When accepting the choices by pressing <Ok>, Geomet will toggle on or off the selections.

NOTE: On DCC style CMMs, the choice for "Motion Control Ribbon" will be available and hidden on manual CMMs.

Controlling Toolbars through the Right Click method

figure 2, Toolbar sub menu

Through the use of the right click submenu, you can toggle the state of a toolbar on or off. Place your mouse pointer over an existing toolbar, or on the banner at the very bottom of the Geomet Window and right click. A submenu will appear from which you can control the state of each toolbar, see figure 2.

As shown, the Editing and Graphic View Toolbars are the only toolbars activate.

Moving and Docking Toolbars

Geomet toolbars can be moved to any location on the display. These toolbars can also be docked to the top or right side of the Geomet view. To move a toolbar that currently is undocked, place your mouse in the Title area of your toolbar or next to a toolbar button, inside the border, see figures 3 and 4.

figure 3 figure 4, Moving a toolbar

Hold you left mouse button down, which will take control of the toolbar and move it to a new location. Once in place release the mouse button.

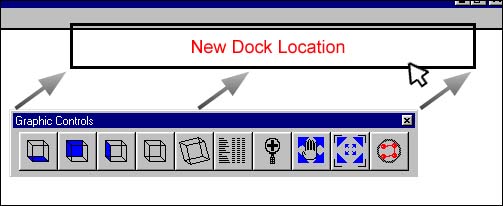

figure 5, Docking a Toolbar

If you move the toolbar in such proximity as to touch the top or right side of the Geomet view, it will “dock” to that location. This allows you to create a clean working environment. A toolbar that is docked can be moved along the edge using the same method as moving a undocked toolbar.

NOTE: double clicking on any toolbar frame of title will toggle its location between the last stored position and its docked position.

Resizing Toolbars

Resizing a toolbar involves dragging a new shape out of a visible toolbar. As you move your mouse over the border of a toolbar it changes shape to a double arrow. Once you have this pointer, hold down your left mouse button, and upon moving your mouse, will resize that toolbar. A outline will appear showing you the new size once you release the left mouse button, see figure 6.

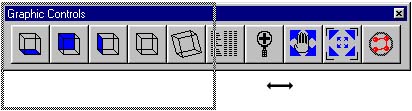

figure 6, Resizing Toolbars

The buttons of the toolbar will reorder themselves according to the outline of the new shape.
