Identify the CMM Interface



7.01.183  Geomet 101+, 301, 501
      Previous Version
  Introduction
  Geomet is designed to work with a wide variety and age of Coordinate Measuring Machines. Geomet does not have the knowledge of the type of CMM it is connected with, but communicates through a CMM Interface.

The CMM Interface is unique to the type of CMM such as manual, Direct Computer Controlled or offline. CMM Interfaces are designed to communicate through USB, ISA, Ethernet and ever RS-232 based on the vintage of the CMM.

It is very important that the proper CMM Interface is selected during installation to ensure correct operations.
  Identifying your CMM Interface

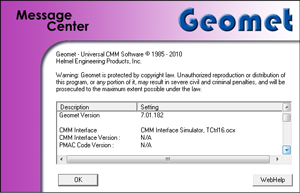

To identify your CMM Interface, choose from the main menu:

[Help→About]

In the text area, scroll down until you see the entry "CMM Interface". On some systems that use the PMAC Motion Controller you will also have settings for:

CMM Interface Version
PMAC Code Version

This information is important in assisting our technical support group. You should also record this information in your manual for future reference. This information will be required when installing Geomet either as a new installatio or as a upgrade.
CMM Interface
