EZ Launch—Polling and File Mapping Service



7.01.183  Geomet 101+, 301, 501
      Previous Version
  The EZ Launch—Polling and File Mapping Service Access

The EZ Launch capabilities can be extended to include fully automated, unmanned operations. This service was developed to accommodate companies that have their own Inspection Process front-end. The CMM 'listens' for information through a polling service that looks for the presence of a ASCII text file with inspection program information.

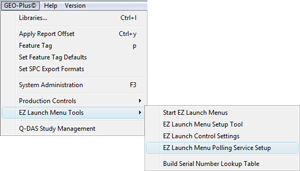

To launch the EZ Launch Polling Setup tool select from the main menu:

Geo-Plus→EZ Launch Menu Tools→
EZ Launch Menu Polling Service Setup
EZ Launch Polling Service

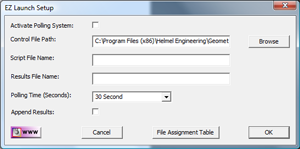

  Polling Service Setup Tool

The Polling Setup Tool provides access to basic setup parameters such as:
  • Activate Polling System
  • Control File Path
  • Script File Name
  • Results File Name
  • Polling Time (Seconds)
  • Append Results
  • File Assignment Table
The polling service is designed to work with File Definition Page #1. Additional pages can then be used for manual inspection program access.
Polling Service Setup
  Activate Polling System

This check will activate the Polling Service inside EZ Launch Menus.

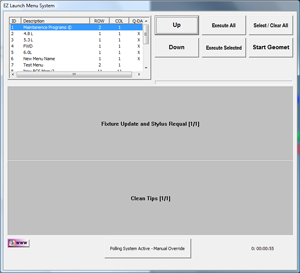

In the example shown here, we have the first Fixture Base Definition selected and then in the lower center section of the menu, a timer is displayed along with a Enable / Disable Polling Service button.

For more detailed explanation on the Polling Service, please visit the Polling Service Summary Page.
Polling Service Active
  Control File Path

The Polling Service will monitor a designated folder on your Geomet system, or across a network for the presence of the script file. In the setup of the Polling Service, you can specify the folder to monitor.

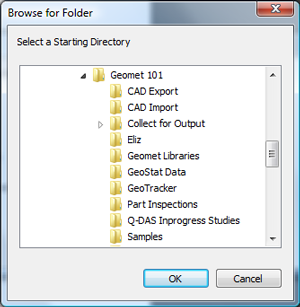

Enter the complete path name, or use the <Browse> option to locate the sub directory, or folder, where the script file and results file will reside.

The path should include the drive and folders, example: C:\My Documents\Geomet 101\

It is not important that the path points to a folder on the local Geomet system. You may use network drives closer to the service where the script files would be generated.
Control File Path
  Script File Name

The script file name is the reusable file the polling service monitors. An outside service creates the formatted ASCII text file and places it in the folder being monitored by the EZ Launch polling service. This is a single fixed name such as "script.txt".

In the data cell, enter the name for the script file including the extension.

For more detailed explanation on the Polling Service, please visit the Polling Service Summary Page.

  Results File Name

Under normal operations SPC data that is tagged for saving to an ASCII file is saved using the name of the inspection program + ".TXT" or "CVS".

The Polling Service allows a redirect of the ASCII data to a designated file entered in the data cell labeled "Results File Name". All inspections, regardless of inspection program name is collected into one common file.

For more detailed explanation on the Polling Service, please visit the Polling Service Summary Page.

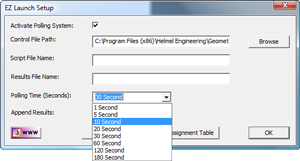

  Polling Time

The Polling Service looks for the presence of the script file at a designated time interval. Select from the drop-down tool one of the predefined time intervals. Under most conditions, 5 or 10 seconds will suffice most applications. Polling Time
  File Assignment Table

The Polling Service reads the script file and locates a number in column 3. This is a index number that identifies the inspection program to be ran.

The need to create a association table between the index number and the corresponding inspection file is handled by the File Assignment Table.

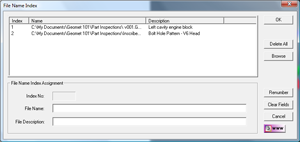

Press <File Assignment Table> to launch the setup tool.

A list of existing entries will be displayed from which you can remove or add entries.
File Assignment Table
  Add a new inspection file

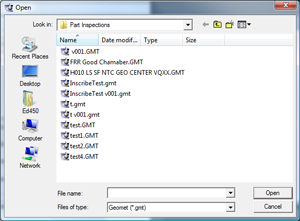

Press <Browse> to launch the file locate tool. This is a standard Windows File Open tool. Navigate to the location where the inspection files exists and select it by highlighting and pressing the <Open> button.

A list of existing entries will be displayed from which you can remove or add entries.
Browse for file

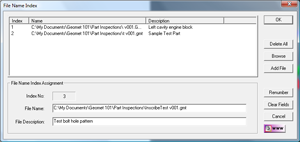

The Inspection file path and name will appear in the group box "File Name Index Assignment". A index number is generated. Add a descriptive text to this entry and press the <Add File> to add it to the list. Adding a file

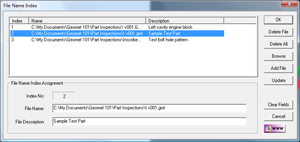

  Summary of File Assignment Tools

Additional tools are provided to provide maintenance to the table of index entries. These are:
  • Delete File
  • Delete All
  • Update
  • Renumber
Delete File: Deletes the selected file from the list. This command is preceded by a message to confirm.

Delete All: Removes all entries from the index table. This command is preceded by a message to confirm.

Update: Changes to the existing path and file or description may be done on the current selected entry. Commit the changes by pressing the <Update> button.

Renumber: When a Delete File has been performed, the index number is not updated automatically to ensure continuity with existing script file services. You may elect to renumber the remaining entries by pressing <Renumber>.
Summary of Tools
  Script File Structure

The syntax of the polling script file is made up of three columns of data separated by a comma. The columns are identified as:

Cradle ID Serial Number File Index
1 1X123 2
4 45VC36 4
5 YH87UJ 6
5 YH87UJ
8   12

To breakdown the results of this table, there are 4 parts being inspected. Cradles 1, 4 and 8 are populated. The part in cradle 5 will have two inspection programs executed on it. All parts except cradle 8 has a assigned serial number.

The actual script file would look like:

1, 1X123, 2
4, 45VC36, 4
5, YH87UJ, 6
5, YH87UJ, 7
8, , 12

For more detailed explanation on the Polling Service, please visit the Polling Service Summary Page.
