EZ Launch—Manual Mode



7.01.183  Geomet 101+, 301, 501
      Previous Version
  Introduction—EZ Launch Manual Mode

In this mode, the operator interacts with the EZ Launch Menu System to select and execute inspection files assigned to various cradles in the fixture.

Each Cradle can have one or more inspection programs assigned to it. One example might be inspection programs written for the operations of a production part. We will use OP10, OP20 and OP30 representing 3 different, and progressive, operations completed during the manufacturing of a part as our example used below.
EZ Launch
  EZ Launch Button Selections—Single File Assignment

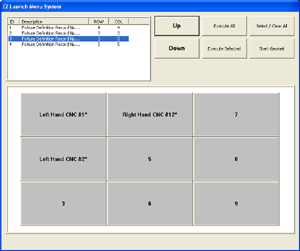

When a EZ Launch Button has just one inspection file assigned to it, left-clicking on the button changes it between selected (Green) and not selected (Gray) mode.

The operator has no other input at this stage except to run the inspection file.
EZ Launch Button Selections
  EZ Launch Button Selections—Multiple File Assignments

When the EZ Launch Button has more than one inspection file attached to it, a second selection tool is displayed which allows to to select which inspection files will be acted upon.

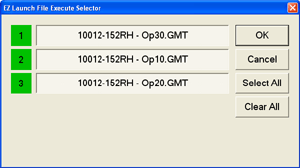

In this example, see figure at right, there are three inspection files assigned to the button. The green box around numbers 1, 2 and 3 represent that all three inspection files are selected.
EZ Launch Multiple File Selection

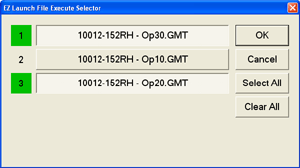

To remove one inspection program from the execution queue, left-click on the file name as shown here. Here we unselected inspection file #2.

When you have selected all required inspection programs, press the <OK> button. Repeat this process for all Cradles that contain production parts.
EZ Launch Multiple File Selection
  Executing all Selected Inspection Programs—Manual Mode

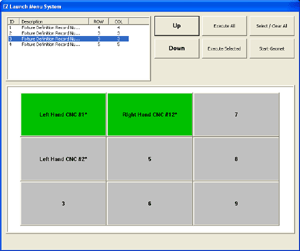

In our example, we have selected Cradles #1 and #4 for inspection. Press the <Execute Selected> control button and Geomet will queue all inspection programs and commence inspection.

Under normal operations, each inspection has a unique Report Header that pauses execution allowing the operator to update any information. When launching programs from the EZ Launch Menu System, the report header does not pause allowing the inspections to proceed.
EZ Launch Button Selections
  Execute All Preselected Inspection Files—Manual Mode
  The command <Execute All> will queue all inspection programs assigned in the Fixture and commence executing the inspection programs. If you are running repeated inspections always using a common fixture layout with all active and assigned cradles, the <Execute All> command eliminates any further operator involvement. Just load and go!
  EZ Launch Button Legacy
  All button selections are saved when inspection file(s) commencement occurs. This is applied to the next time EZ Launch is displayed. The best description of this capability is when you are repeating inspections. For example, if cradles 1, 4, 5 and 7 are used with OP10 and you have 40 parts to inspect, after you setup the first batch of files, just load the second batch and press <Execute All>.
