Introduction |
| |
The EZ Launch Menu System contains 7 user defined buttons outside of the
buttons defined in the Cradle Definition. The buttons
are:
- User Defined #1
- User Defined #2
- Execute Selected
- Execute All
- Start Geomet
- Run Calibrate
- Return
When you assign new names for these control buttons,
they are passed to any new or existing Fixture Base
Definitions. When you assign Control Button names
directly from the Cradle Definition Tool, they are
assigned to that selected Fixture Base Definition and
take priority over the Global Names settings |
| |

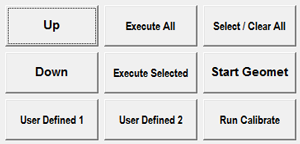

The EZ Launch Menu System—User
Defined Buttons |
| |
There are 9 touch screen friendly buttons
located on the menu system 7 of which can have
custom names can be applied too. The
<Up> and <Down>
buttons can not be changed.
As a default,
Geomet applies the names listed above which is
applied to all EZ Launch Menus being displayed.
Changing the names of these buttons using the
Global Names tool will change all menus equally.
NOTE: On a single Cradle Definition setup, a
custom name can be attached to any button which
then is applied only to that one menu. |
 |
|
| |
Launch the Global Names Tool |
| |
|

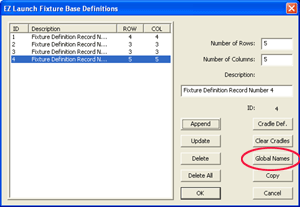

From the Fixture Definition Setup Tool, press
the <Global Names> button. |
 |
|
| |
Launch the Global Names Tool |
| |
|

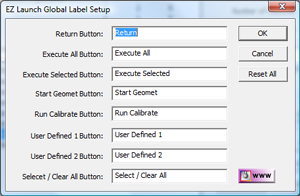

The EZ Launch Global Label Setup tool displays
the current values for each Control button.
Change the names to fit your needs. When
finished, press <Ok>. |
 |
|
| |
|
