Datum Bonus Tolerance when applied to a complying feature, allows movement of the origin based on the MMC / LMC value of the reference feature.

Summary of the Datum Bonus Tolerance (DBT) Process

Not all features qualify for DBT. The feature must have a size characteristic such as a circle. Geomet supports DBT only on 2D Circle features in version 6.66 and below. Circles are a 2D feature that is projected into a PCS base plane. Therefore, the DBT is constrained to the same base plane as the circle.

DBT is an automatic calculation in Geomet. By pressing the Origin key <l> after measuring and applying tolerance to the circle, Geomet will build the DBT value and flag the projected PCS base plane if the circle does not have a tolerance applied on its size, then DBT will not be available.

Review of DBT in action

DBT can be best understood in the assembly environment. Using the example of two bores that have two posts inserted that will be inserted can be used to explain the benefits of DBT.

The figure below illustrates the origin which is not taking advantage of DBT as it was designated RFS, or Regardless of Feature Size.

RFS Origin

The assembly of these two components results in a interference caused by the normal manufacturing process that resulted of both the mating bores, and even the posts, not at the expected normal position values.

The axis of the Origin is defined as the XY location of the axis of the bore. Even if the mating post is undersized, but in the tolerance zone, it is not allowed to move for a best fit consideration.

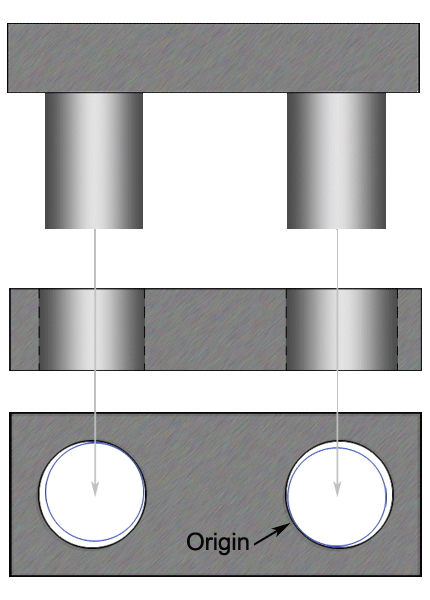

In the figure below, the Origin is tagged as encoded with DBT and has the designator in it's Datum Frame Reference. The attachment of the MMC symbol on the Origin label instructs the tolerance tool to add in the DBT value when determining the final tolerance zone.

With DBT

As you can see, the post that fits into the bore marked as the Origin can move to its MMC limit allowing the mating post to fit within the bore for a proper assembly.

Important Reminder

Geomet calculates the available DBT value only when there the origin feature, the circle, has its size tolerance applied to it.

Applying DBT in the Tolerance Tool

Apply DBTApplying DBT is a simple process of placing a check in the Datum Bonus Tolerance group as shown in the figure at right.

The Total Tolerance Zone will update with the new total zone calculated.
